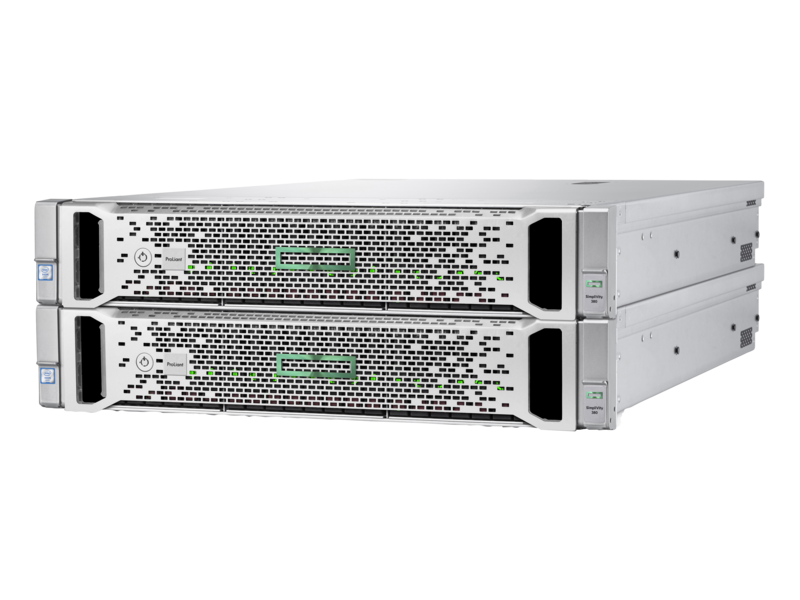

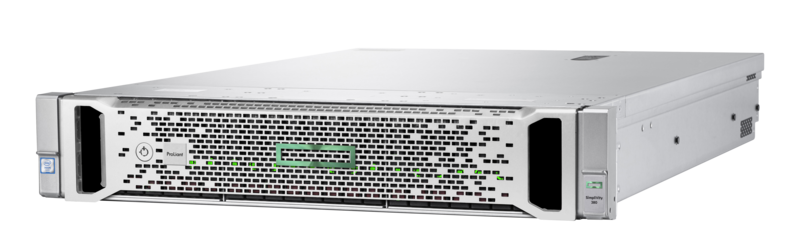

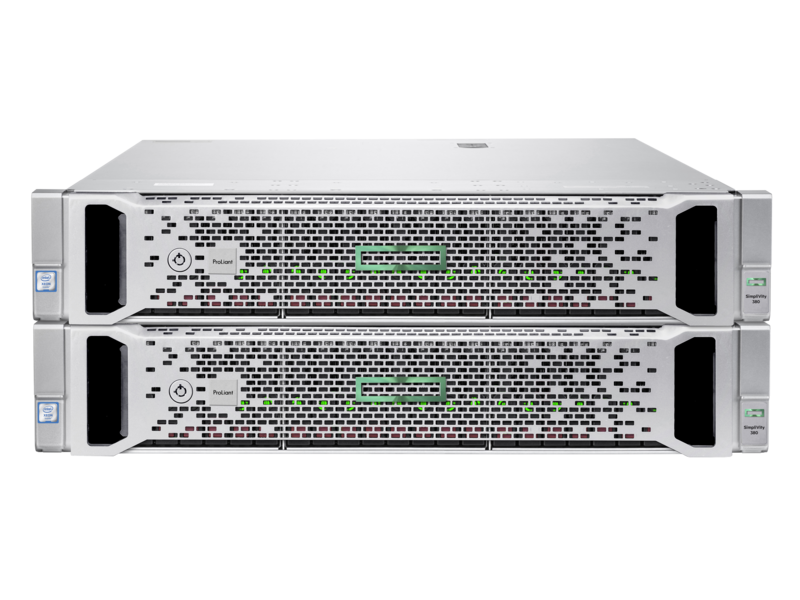

HPE SimpliVity 380
A Hyperconverged Platform for Enterprise
Is complexity in your data center slowing you down?
The HPE SimpliVity 380 gives IT leaders the agility and economics of the cloud with the control and governance of on-premises IT. It delivers a powerhouse hyper converged solution capable of running some of the world's most efficient and resilient data centers1. This solution dramatically simplifies IT by combining infrastructure and advanced data services for virtualized workloads onto the bestselling server platform in the market. HPE SimpliVity 380, available on HPE ProLiant DL380 Servers, is a compact, scalable 2U rack-mounted building block that delivers server, storage, and storage networking services. It also delivers a complete set of advanced functionalities that enables dramatic improvements to the efficiency, management, protection, and performance of virtualized workloads at a fraction of the cost and complexity of today's traditional2 infrastructure stack.
- HPE SimpliVity 380, now adding support for Microsoft Hyper-V Server 2016.
- HPE SimpliVity 380 for Hyper-V is managed through Microsoft System Center 2016 Virtual Machine Manager
1. IDC Server Tracker, CQ1 2016
2. The Total Economic Impact Of HPE SimpliVity hyper converged infrastructure, Forrester Consulting, November 2015
Complete Hyper Convergence in a Fully Integrated System
The HPE SimpliVity 380 combines x86 resources, storage, and storage networking in a single hyper converged system with advanced functionality.
Simplifies management and delivers outstanding cost efficiency and agility.
Increased visibility and control with unified management.
Delivers rapid deployment so you can respond to business needs faster.
Unify virtual machines and infrastructure tasks to reduce virtual machine (VM) sprawl and overprovisioning.
Peak and Predictable Performance
The HPE SimpliVity 380 delivers an all-flash solution delivering predictable and near linear performance at near-wire speeds while reducing latency.
Hardware-assisted in-line deduplication, compression, and optimization helps reduce I/O and network traffic.
On Demand Scale-in and Scale-out
The HPE SimpliVity 380 can easily expand or contract configurations as your needs change.
Each node supports a large number of fully protected virtual machines (VMs).
A networked collection of nodes at both local and remote sites are managed as a single entity.
Advanced Data Services
The HPE SimpliVity 380 delivers always-on deduplication and compression to significantly reduce capacity utilization.
Built-in resiliency, backup, and disaster recovery for data protection.
Policy-based, virtual machine (VM) centric management to streamline operations.
- VDI (VMware Horizon, Citrix VDI)
VMware vSphere (HPE SimpliVity management plugin for VMware vCenter), Microsoft Hyper-V (HPE SimpliVity management plugin for Microsoft System Center)
- Physical Dimensions
2U form factor
3.44 x 26.75 x 17.54 in
8.73 x 67.94 x 44.54 cm
Dual Intel® Xeon® E5-2600 v4 (Broadwell) 16-44 cores
5-12 x 1.9 TB SSD for effective storage capacity of 6-40 TB and 12 x 3.84 TB SSD for effective storage capacity of 80 TB
2 x 10GbE (SFP+) and 2 x 1GbE (RJ45) up to 1 additional NICs on dual CPU: 2 x 10GbE (SFP+), 2 x 1GbE (RJ45) or 4 x 1GbE (RJ45)
- Power Supply
Dual 800W 100/240 VAC @ 50/60 Hz (auto-sensing)
Download the HPE SimpliVity 380 Datasheet (PDF).
